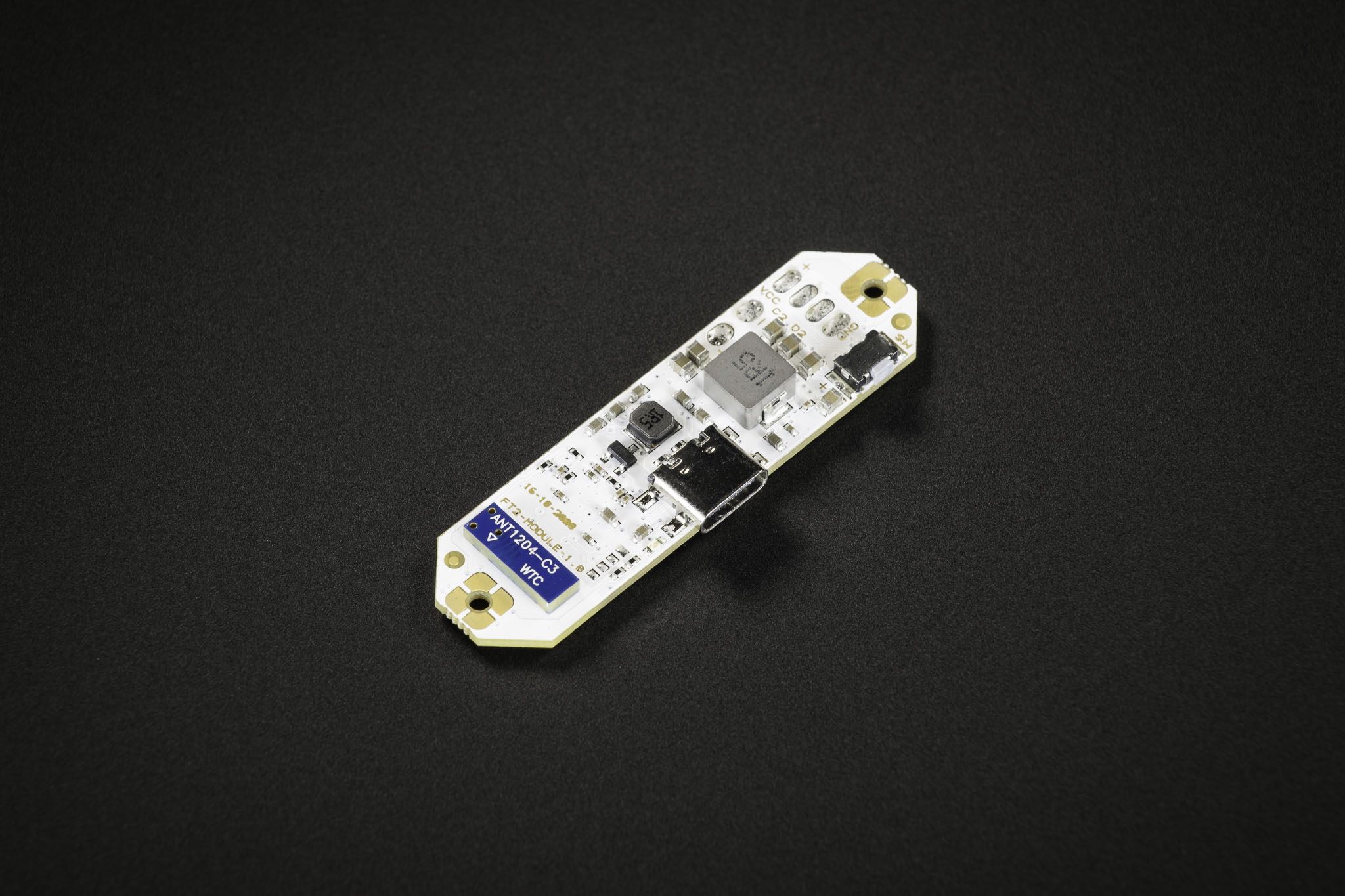

FT2 control chip

FT 2
programmable
DIY

build your own pixel LED props!
compatible with FT remote and other Lighttoys props
for 5V digital LED strips (APA102, WS2812)
two separate digital outputs
DC-DC converter for stable output voltage
easy configuration in LtComposer
200 meters signal range
USB-C fast charging
Requires FT remote to control

Important: electrical and soldering skills needed. Before purchase, check the
Installation guide!

$109 (incl. VAT)

In stock

Explore, compare, enjoy:

Photo gallery Videos Specifications Programming

Digital world

FT2 chip for your digital installations

Welcome to the exciting world of pixel light decorations, costumes & props using the FT2 chip! Build and program your own unique LED devices with stunning pixel effects. Perfectly compatible with the FT remote, LtComposer software and other Lighttoys props!

FT Chip by Lighttoys – programmable DIY unit for LEDs

Captivate your audience with Visual Hoop

Example usage videos

Play video

LTCOMPOSER & FT2 LED CLUBS SHOWCASE

Experience the immense creative power of FT2 props & LtComposer composing software in this new demo made for 6 LED Clubs FT2!

FT2 chip tutorial | Pyroterra Lighttoys

How to use and solder FT2 chip? This video will take you through the process. So you can build your own LED products and program it with LTcomposer!

FT2 chip in action - Philgor's LED Scythe

Talented Philgor built a unique LED Scythe using Pyroterra Lighttoys FT2 control chip.

FT2 Decoration tubes with TYGROO

With music programmable FT2 chips, you can create anything you put your mind to!

FT2 Chip demo by Simone Fluhr

Multiple props powered by FT2 chip from Pyroterra Lighttoys. With stunning LTcomposer programming made by Simone Fluhr.

Pyroterra Lighttoys programming LED gear - by Flambé Circus

Programming showreel with a lot of Pyroterra Lighttoys FT props. Including many custom build using FT chip. Over 70 props in epic light action.

Pyroterra Lighttoys FT2 trailer

Example of a project build with FT2 chip. Addressable Light cable. Build your own creations with FT2 chip and program them with images with the LTcomposer.

Amit Kenig 'UPGRADED' LED Staff Spinning Performance

Pyroterra ISL INDIA 2019 programming

FT chips and Ltcomposer presentation. The opening ceremony of ISL 2019

Pyroterra multimedia Christmas show

Fire SFX & LED-light Visual concept lighted up a building. Large scale multimedia show created from scratch for a magical Christmas event in the city of Příbram in the Czech...

Japanese traditional umbrella with FT chip

Made by Ayumi Sato. Thank you for enriching the family of FT props with the Japanese traditional umbrella!

Programming a Tron Dance Act!

Ever wonder what all goes into creating a Tron Dance act? Enjoy this behind the scenes look at the software and programming of our latest show. By Fire Desire Entertainment

SPECIFICATIONS

dimensions: 58 × 16 × 6 mm
weight: 4.9 g
supply voltage: 3.3 - 5.0 V
no. of digital outputs: 2

LED strip type: 5V digital
Variants: WS2812, APA102
No of LEDs: up to 600
A/B segments: yes

signal range: 200 m
fast charging: 1.5A
battery indication: yes
memory banks: 4

FT2 CHIP FEATURES

Show captivating pixel effects & images on your own light installations and props! FT2 chip is a receiver unit for controlling 5V digital pixel LED strips. Thanks to its integrated DC-DC boost converter, even long LED strip installations will perform reliably, even as the battery gets low. The integrated fast charging circuit and USB-C connector will charge your attached Li-ion battery in the blink of an eye.

6 levels of brightness, with automatic reduction when the battery is nearly empty. FT2 chip parameters are easily configurable in the LtComposer software to suit your specific application. Show programming is done the same way as other Visual and FT2 products from Pyroterra Lighttoys.

Battery life

low power consumption
& battery life indicator

Remote
control

from distances up to
200 meters away

pyroterra lighttoys FT2 chip led addressable controller

Perfect
sync

control all props perfectly
synchronized

Smart
button

misclick protection
ongoing show check

Stable & high
brightness

DC converter for stable output
6 levels of brightness

EASY TO USE SOFTWARE

Our simple, yet powerful LtComposer software makes

the preparation of image sequences a walk in the park.

MAC OS

Windows

pyroterra lighttoys software ltcomposer for programming leds

Learn more

USB upload
and charge

VISUALPOI.ZONE

Share and find the best graphics

for your Visual Poi, Hoop, Wand & FT2.

It's for free!

Discover

Pyroterra Lighttoys visual poi zone - images for visual poi and lt composer

FT2 CHIP INSIDE

A powerful chip beats inside all our Lighttoys LED props,
granting them unique capabilities & reliability. Find out why
the world's top artists trust the Lighttoys FT system.
